ZYGO XSD-061 Vlsi Calibration Standard Optical Profilers ZSD-061 6635-003-013

( Brand: Zygo ), ( Manufacturer Part Number: XSD-061 )

Review ZYGO Vlsi Calibration Standard Optical Profilers

Introducing the ZYGO ZXD-061 / ZSD-061 6635-003-013 VLSI Calibration Standard, an essential tool for ensuring high-performance and accuracy in optical profiling applications. This calibration standard, manufactured by ZYGO Corporation, is meticulously designed to meet the stringent demands of modern metrology and quality control processes.

The ZYGO VLSI Calibration Standard is a versatile and compact device, featuring a 10 x 10 mm square grid of over 10,000 sub-micron sized features. These features include 1.2 m square pyramids, 0.8 m square pyramids, and 0.4 m deep V-grooves, arranged in a well-defined pattern. Its high feature density makes it an ideal choice for calibrating and verifying the resolution and accuracy of various types of optical profilers.

This calibration standard is constructed using a robust, high-quality glass substrate. To ensure the stability and longevity of the features, they are embedded within a thin layer of protective photoresist. The combination of the glass substrate and photoresist layer provides excellent resistance to environmental influences, such as temperature and humidity, ensuring that the features maintain their precise dimensions and shapes over an extended period.

The ZYGO VLSI Calibration Standard is supplied with a comprehensive calibration report, detailing the results of various measurements performed using a range of high-precision optical profiling systems. These measurements include feature height, width, and spacing, as well as the evaluation of the system's lateral and vertical resolution. The calibration report also includes a set of certified reference data files, which can be used to verify the system's performance and accuracy over time.

In conclusion, the ZYGO ZXD-061 / ZSD-061 6635-003-013 VLSI Calibration Standard is a valuable addition to any metrology laboratory, offering accurate and reliable calibration for optical profiling systems. Its high feature density, robust construction, and comprehensive calibration report make it an indispensable tool for maintaining the highest levels of precision and accuracy in optical metrology applications.

The Zygo ZSD-061 VLSI Calibration Standard is a precision instrument designed for use with optical profilers in various industries, including semiconductor manufacturing, research, and metrology. Here are some pros and cons to consider before making a purchase.

1. High Precision: The ZSD-061 is known for its high precision and accuracy, making it an ideal calibration standard for optical profilers. It provides reliable and consistent measurements, ensuring the accuracy of the data obtained from the profiling process.

2. Versatility: The calibration standard is suitable for use with a wide range of optical profilers, including those from different manufacturers. This makes it a versatile and cost-effective solution for laboratories and research institutions that use multiple profiling systems.

3. Durability: The ZSD-061 is built to last, with a rugged design that can withstand the rigors of daily use. It also comes with a protective case, making it easy to transport and store when not in use.

4. Traceability: The calibration standard comes with a certificate of calibration traceable to international standards, ensuring that the measurements obtained are accurate and can be trusted.

5. Easy to Use: The calibration standard is easy to use, with clear instructions provided in the user manual. It also comes with software that can be used to analyze the data obtained from the profiling process.

1. Cost: The ZSD-061 is a high-end calibration standard, and its price reflects its advanced features and precision. It may be a significant investment for smaller laboratories or research institutions with limited budgets.

2. Requires Regular Calibration: Like all precision instruments, the calibration standard requires regular calibration to maintain its accuracy. This can add to the cost of ownership and may require additional resources and time.

3. Complexity: The calibration standard and the software that comes with it can be complex to use for those without a strong background in metrology or optics. This may require additional training or expertise.

In conclusion, the Zygo ZSD-061 VLSI Calibration Standard is a high-precision and versatile instrument that is ideal for use with optical profilers in various industries. Its durability, ease of use, and traceability make it a valuable investment for laboratories and research institutions. However, its cost and the requirement for regular calibration may be a drawback for smaller organizations with limited budgets. Ultimately, the decision to purchase the ZSD-061 should be based on the specific needs and resources of the organization. If the benefits of high precision and versatility outweigh the costs, then the ZSD-061 is a worthwhile investment.

Details:

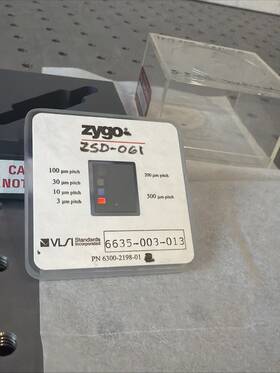

Zygo P/N: ZSD-061 6635-003-013 6300-2198-01, 500um Pitch 200um 100um 30um 10um 3um Pitch, Excellent Condition. Buyer to pay shipping. Zygo P/N requires MP 7.7, MP8, MP9, or MC software.
